Dampfturbinen
Typischerweise bestehend aus Dampfturbine, Generator, Dampfkondensator, zusätzlicher Ausrüstung und Steuerungssystemen.
Klicken Sie auf die Ref.-Nr. oder auf das Bild, um mehr Informationen zu erhalten.
| Output MW | Type | Steam Parameters | Built | Manufact. | Ref.-Nr. | Picture |
|---|---|---|---|---|---|---|
| Condensing type | ||||||

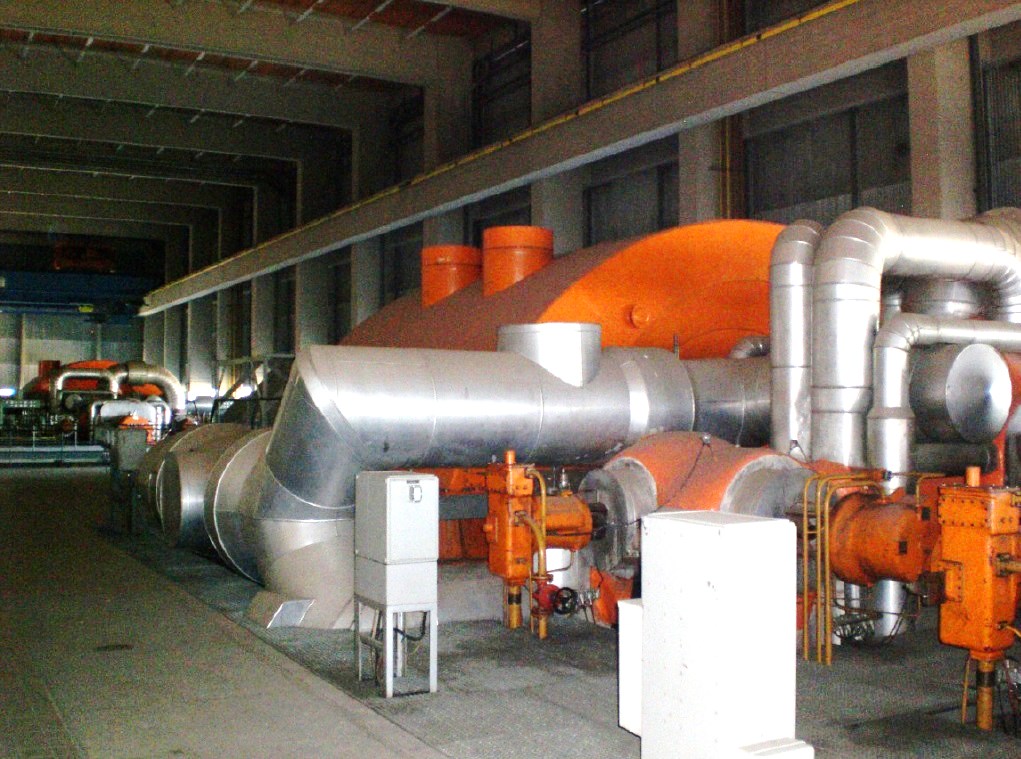

| 150 x 2 | condensing | 177-188 bar / 535°C | 1975 | KWU (Siemens) | STG-29.13 |  |

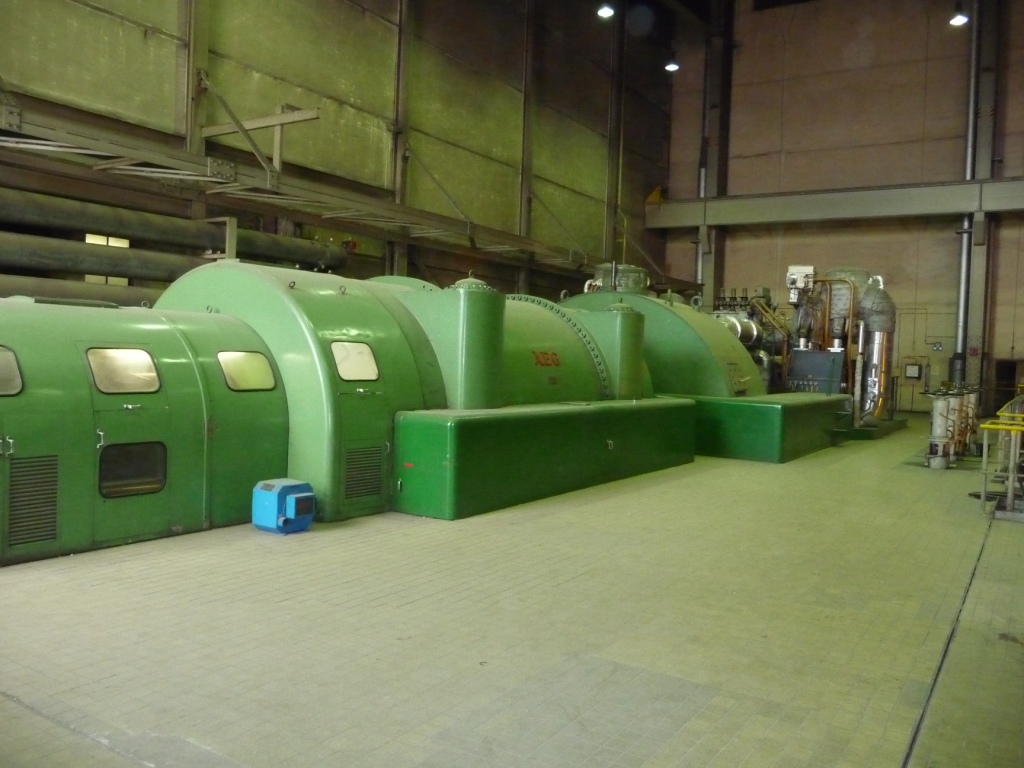

| 70 | condensing | 177 bar / 530°C / 200t/h | 1996 | Siemens | STG-28.37 |  |

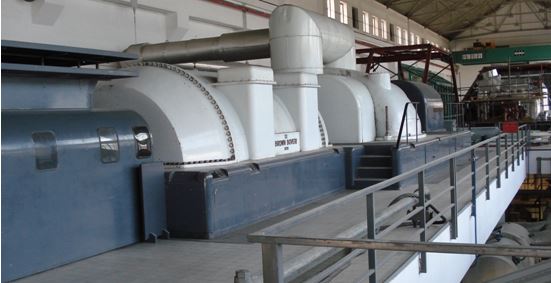

| 66 | cond./extraction | 89 bar / 525°C | 1967/1985 | BBC (ALSTOM) | STG-28.15 |  |
| 60 | condensing | 68 bar / 478 °C | 1992 | GE | STG-29.57 |  |
| 37,5 | cond./extraction | 90 bar / 530 °C / 134 t/h | 1992 | Siemens | STG-29.56 | |

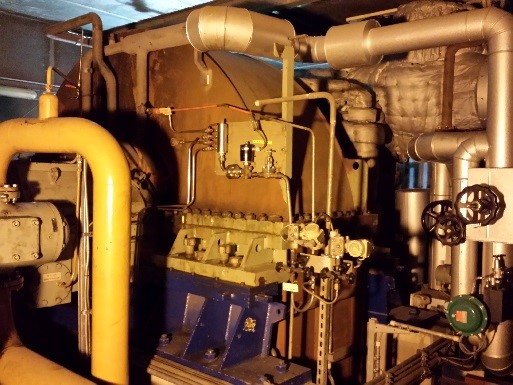

| 30.2 | cond./extraction | 120 bar, 520 °C, 210 t/h | 1996 | ABB Turbinen Nürnberg GmbH | STG-29.33 |  |

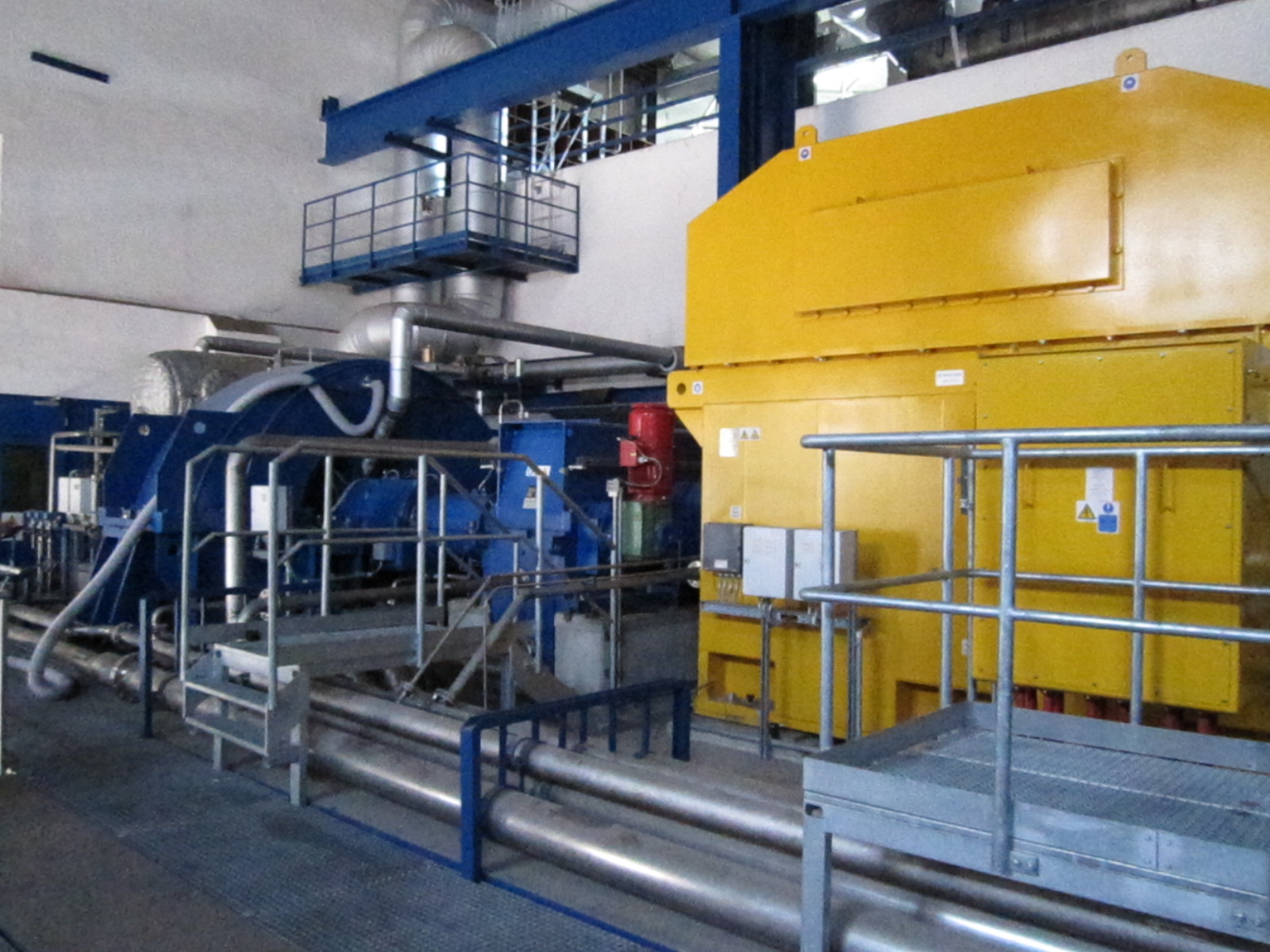

| 30 | CE | 70 bar / 525 °C / 90 t/h | 2009 | German | STG-29.72 |  |
| 24,6 | C | 110 bar / 520 °C / 50 t/h | 1997 | ABB | STG-29.76 | |

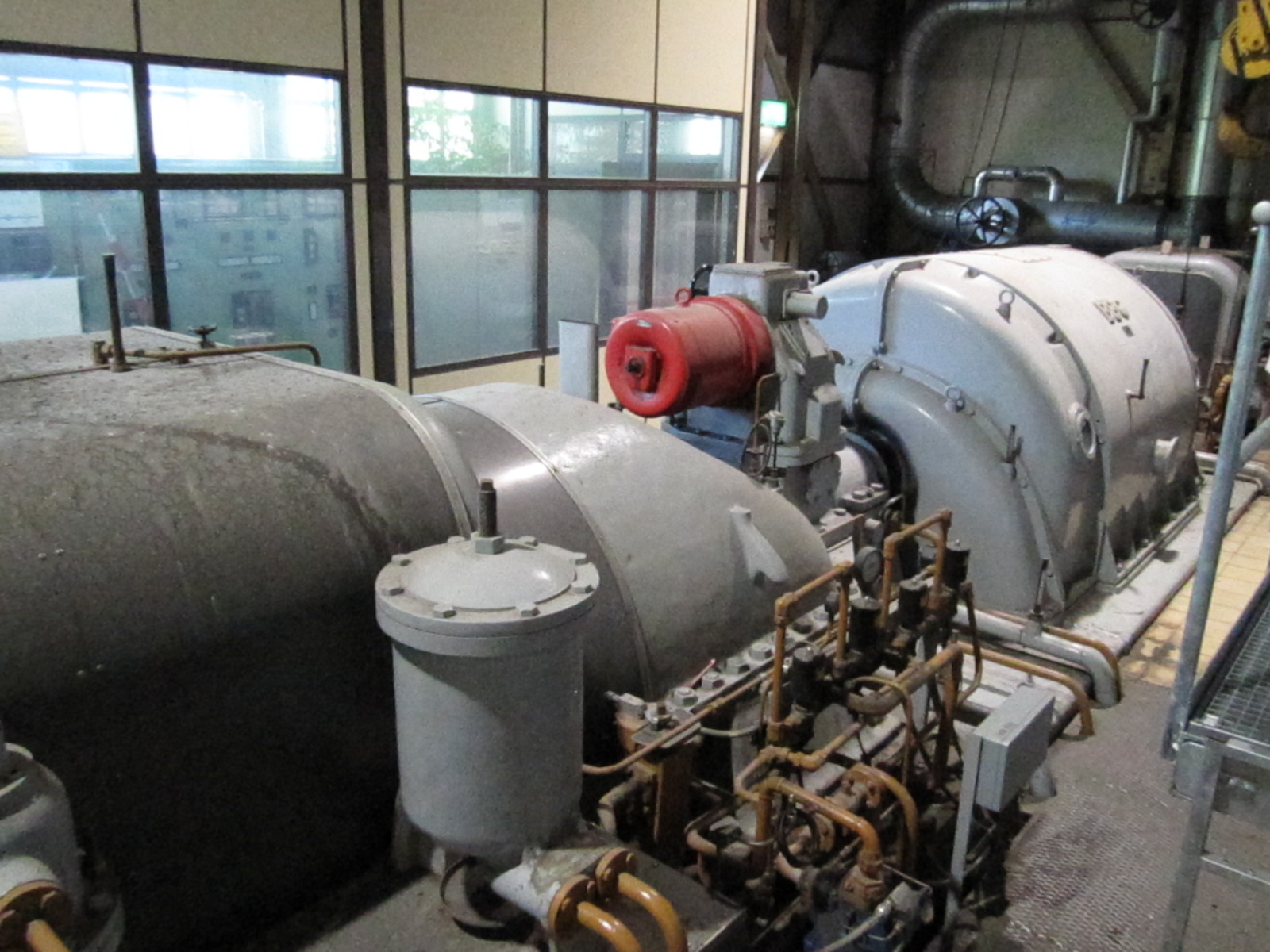

| 24,6 | CE | 43 bar | 1981 | Jeumont-Schneider | STG-29.71 |  |

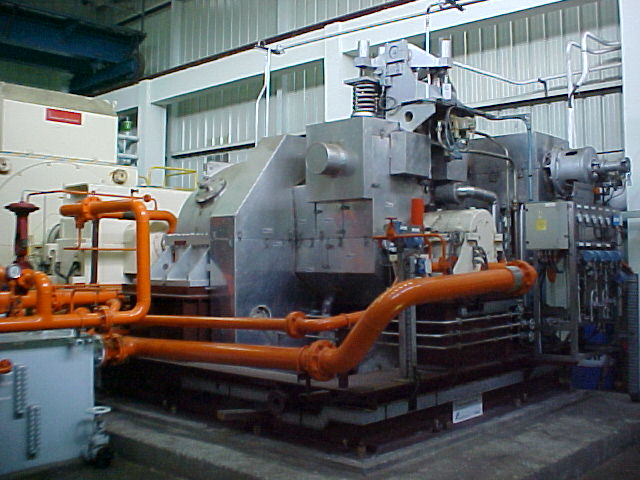

| 15,6 | cond./extraction | 31 bar / 440°C / 70t/h | 1998 | GE | STG-27.63 |  |
| 14,3 | CE | 72 bar / 525 °C /60 t/h | 1962 | BBC | STG-29.73 | |
| 12,8 | condensing | 41 bar / 433 °C / 43 t/h | 1995 | Ansaldo | STG-29.51 | |
| 12,5 | C/B | 81,4 bar / 495 °C / 62,5 t/h | 1998 | Ansaldo | STG-29.50 | |

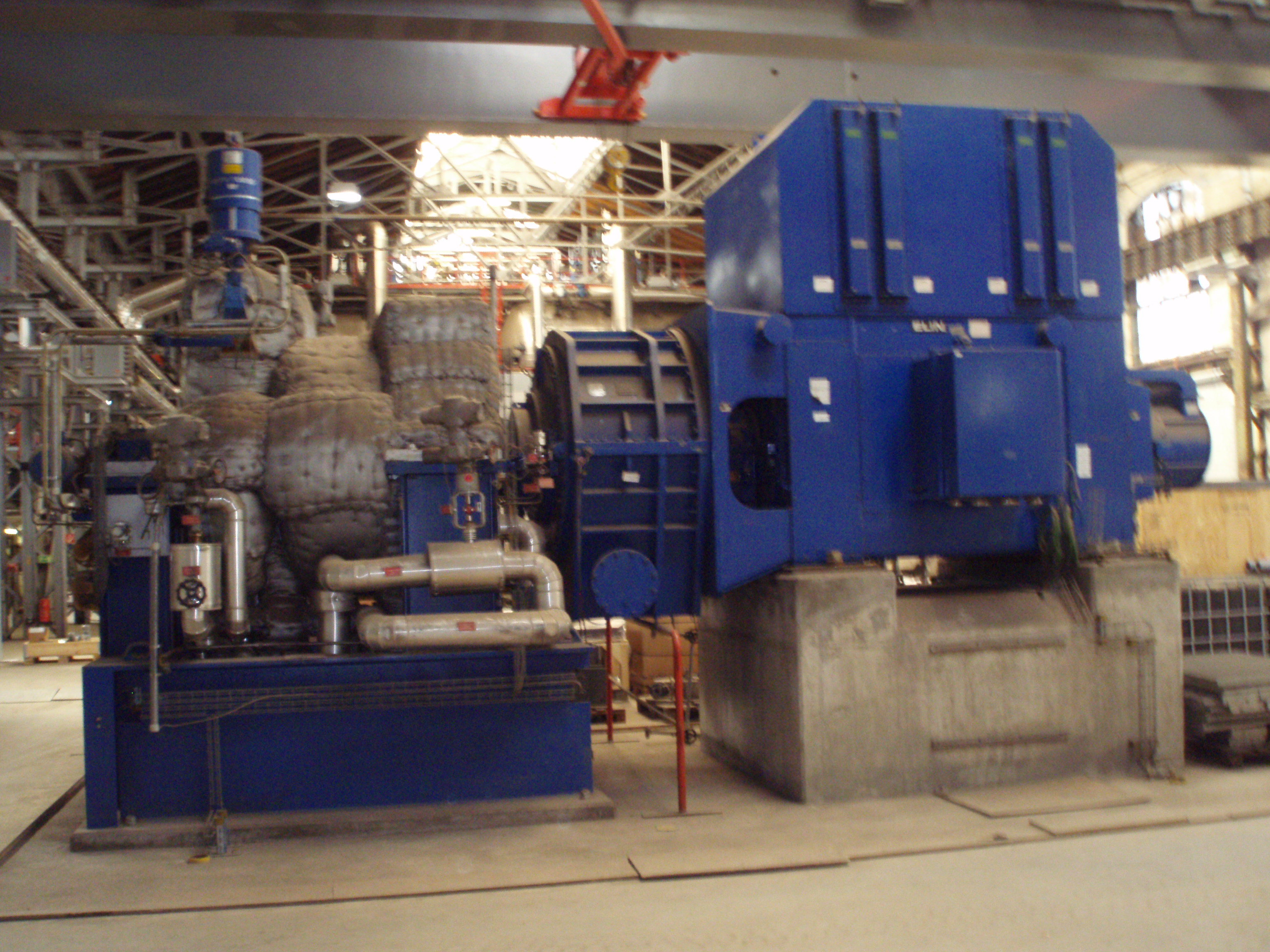

| 11 | condensing | 46 bar / 450 °C | 2001 | MAN B + V | STG-29.46 |  |
| 8,2 | C | 43 bar / 458 °C / 32 t/h | 1999 | Allen | STG-29.62 | |
| 6,5 | condensing | 20 bar / 375°C | 1997 | Siemens | STG-28.69 |  |

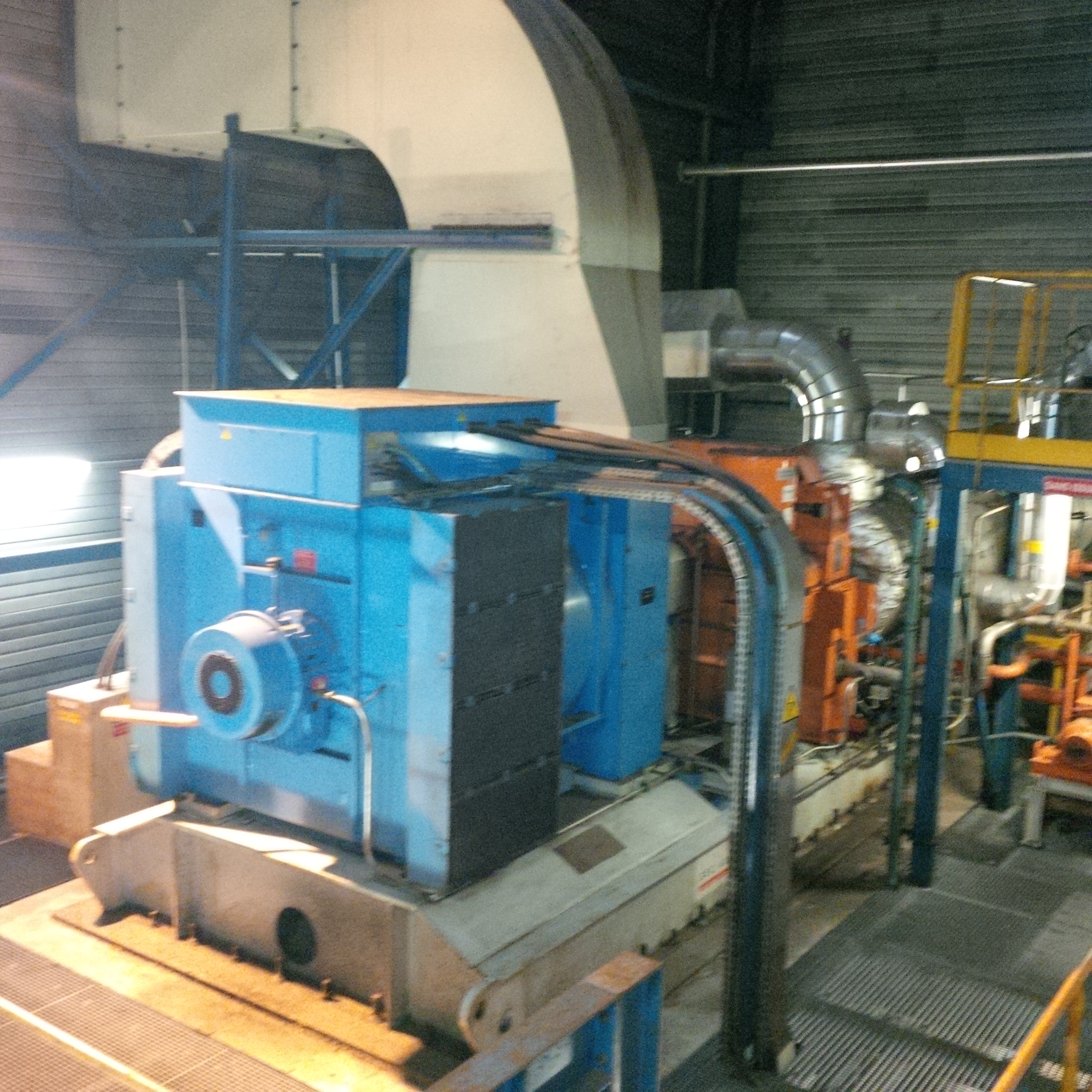

| 6 | condensing/extraction | 37 bar / 345 °C / 29 t/h | 1993 | GE Alsthom | STG-29.38 |  |

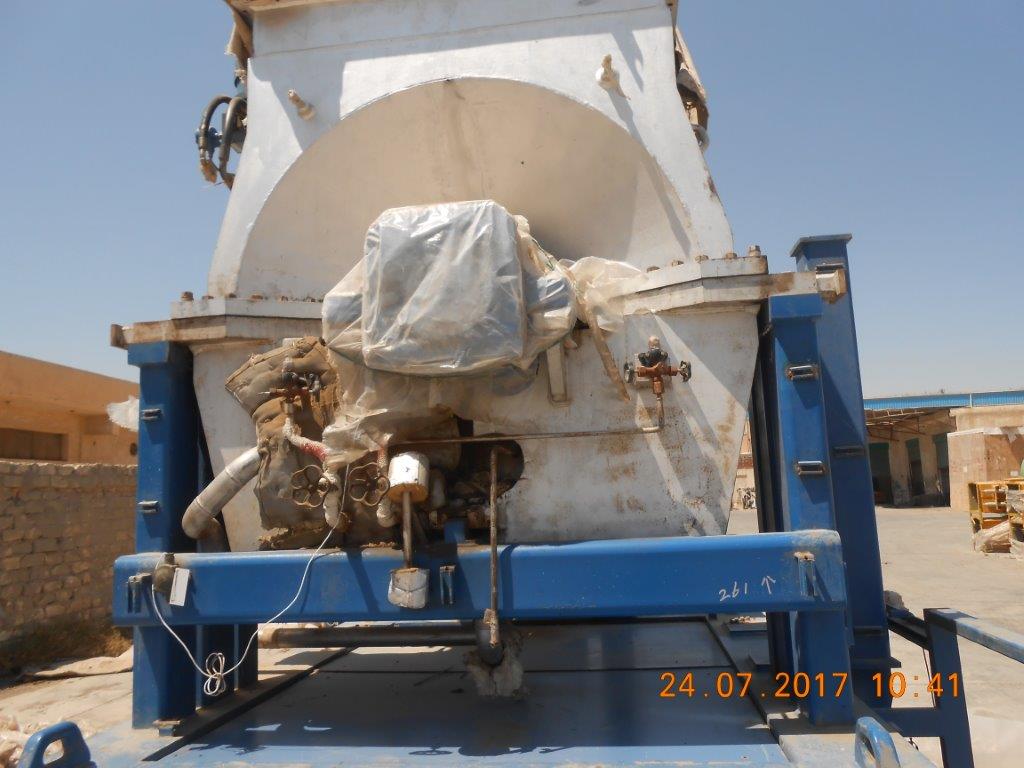

| 6,6 | CE | 40 bar / 440 °C / 65 t/h | 1999 | MAN | STG-29.55 |  |
| 6 | CE | 44 bar / 420 °C / 30 t/h | 2000 | Bellis | STG-29.70 | |

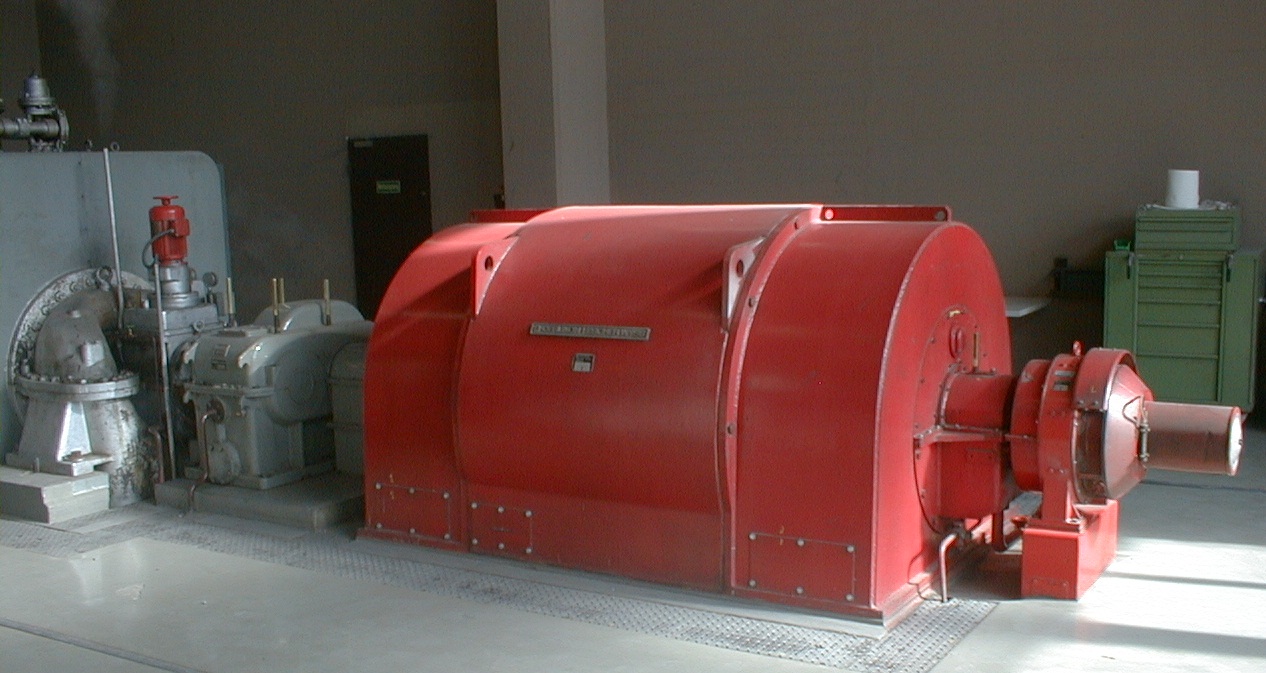

| 5 | cond./extraction | 38 bar / 375°C / 30t/h | 1968 | Escher-Wyss | STG-27.11 |  |
| 4,7 | C/E | 58 bar / 450 °C / 25 t/h | 2002 | Alstom | STG-29.68 | |
| 3 | condensing | 21.5 bar / 275°C / 23t/h | 1997 | KKK | SGT-29.16 | |
| 3,7 | C/E | 35 bar / 410 °C | 1999 | KKK | STG-29.65 | |

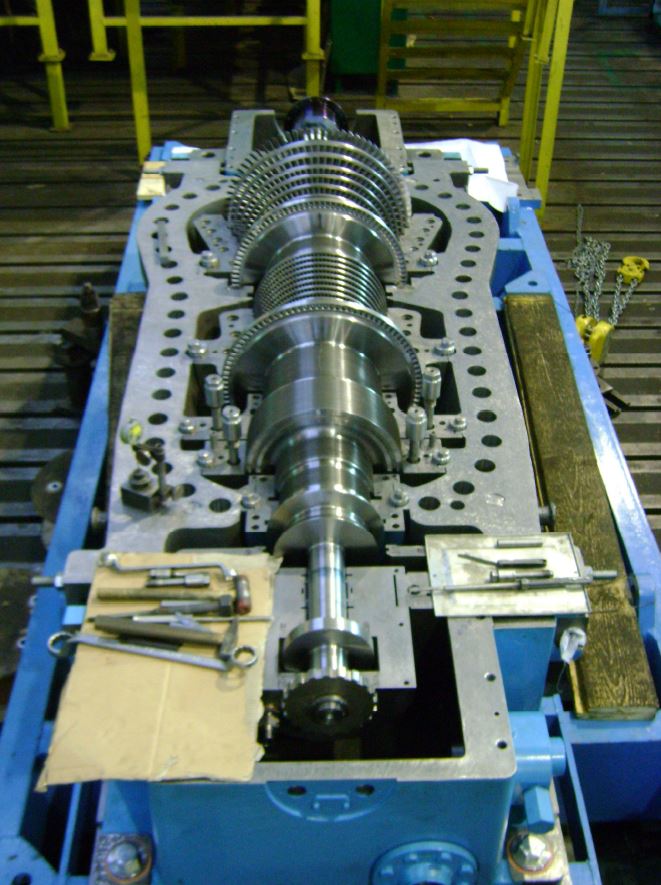

| 2.5 | condensing | 35 bar / 380°C / 13.5 t/h | 2011 | European manufacturer | STG-29.36 |  |
| 2,6 | C/E | 39 bar / 397 °C / 14,7 t/h | 2007 | 2007 | STG-29.67 | |
| 1,8 | C/E | 24 bar / 430 oC /9,5 t/h | 2000 | KKK | STG-29.60 | |
| 1,3 | C/E | 40 bar | 1997 | KKK | STG-29.66 | |
| Backpressure type | ||||||

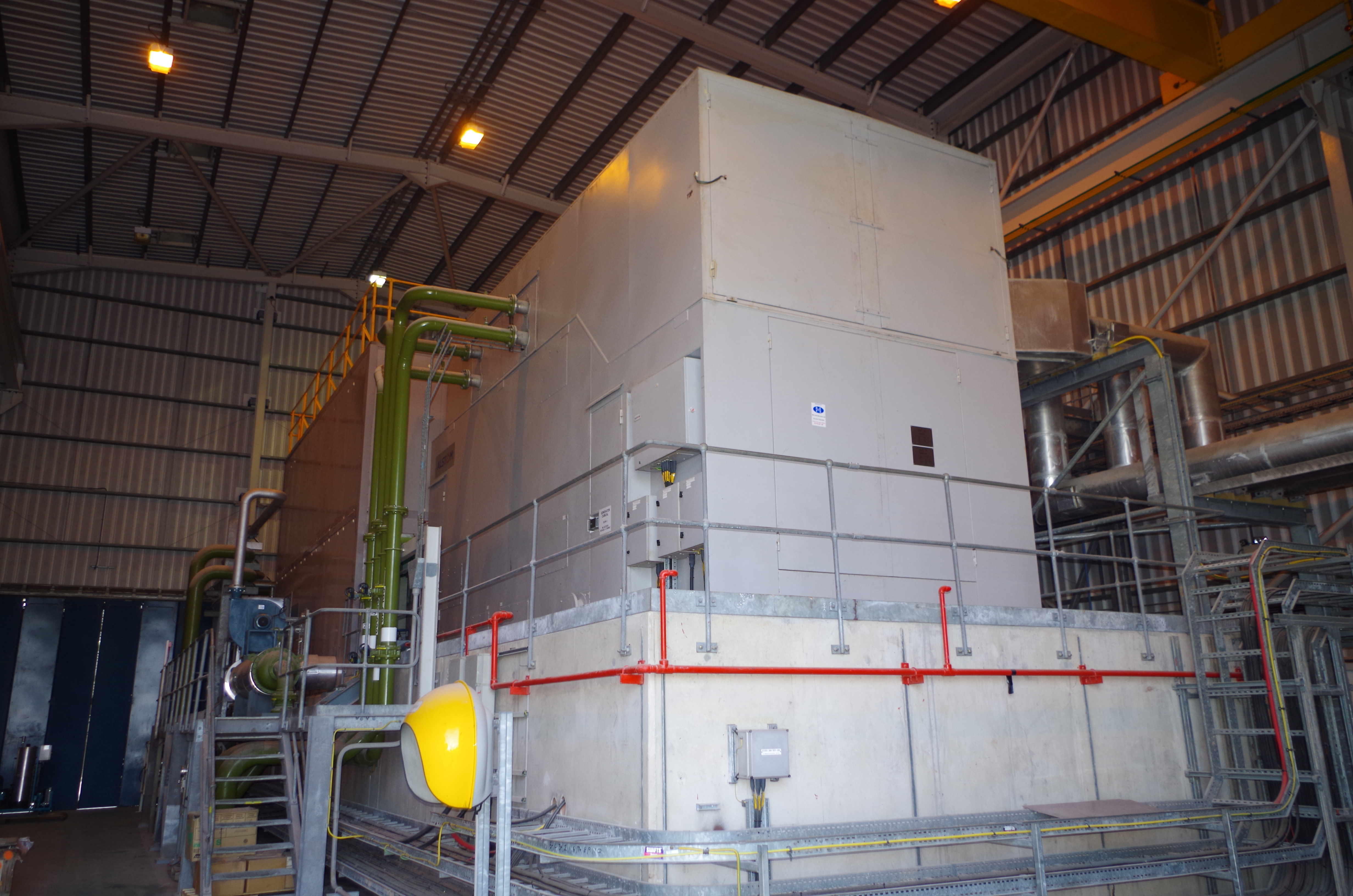

| 58 | backpressure | 70 bar a / 455°C | 2000 | Alstom | STG-29.27 |  |
| 46,9 | B/E | 70 bar / 510 °C | 1994 | Siemens | STG-29.75 | |
| 12,6 | backpressure | 77 bar / 485°C | 1971/1986 | Siemens | STG-28.84 | |

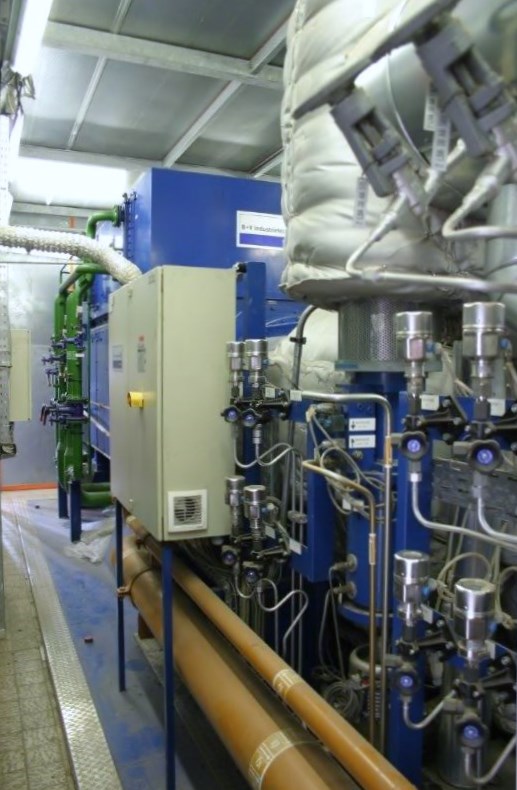

| 9.2 | backpr./extraction | 73 bar / 520°C / 45t/h | 2005 | Blohm + Voss | STG-29.28 |  |
| 9 | B | 68 bar / 490 °C | 1974 | Siemens | STG-29.39 | |
| 7,5 | B | 47 bar / 380 °C | 1993 | Dresser Rand | STG-29.61 | |

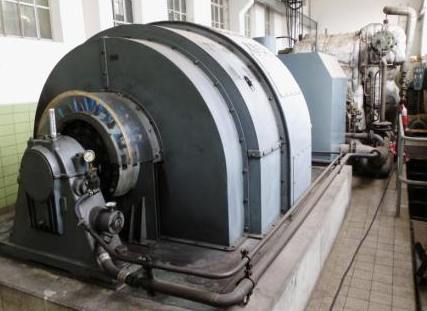

| 5,2 | backpr./extraction | 81 bar / 510°C | 1974 | AEG Kanis | STG-28.94 |  |
| 2.7 x 2 | backpressure | 39 bar / 390°C / 32t/h | 1977 | Siemens | STG-28.30 | |

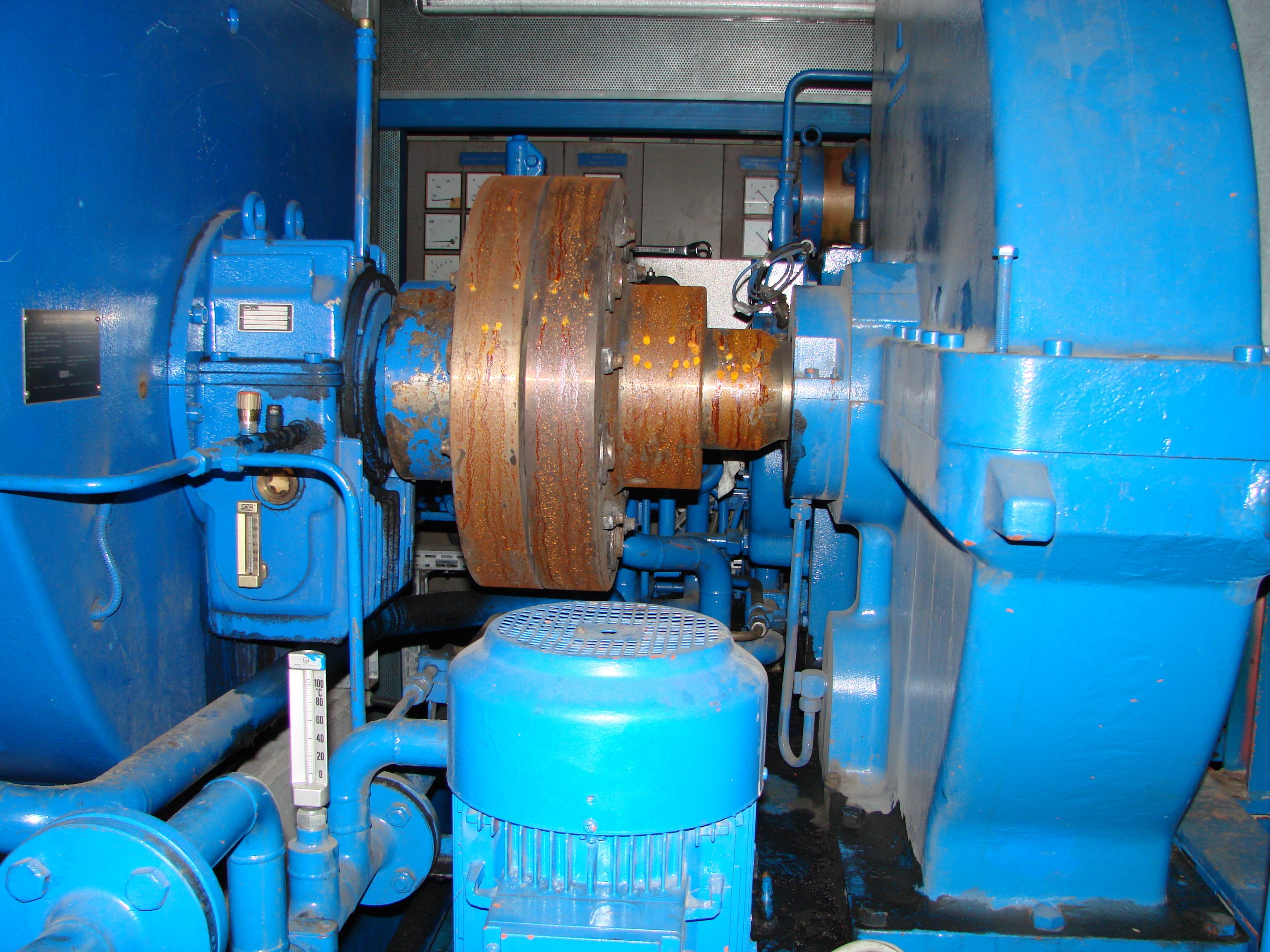

| 2,2 | backpressure | 65 bar / 480°C | 2002 | KKK | STG-27.48 |  |
| 1,1 | backpressure | 41 bar / 450°C | 1966 | Siemens | STG-28.91 | |

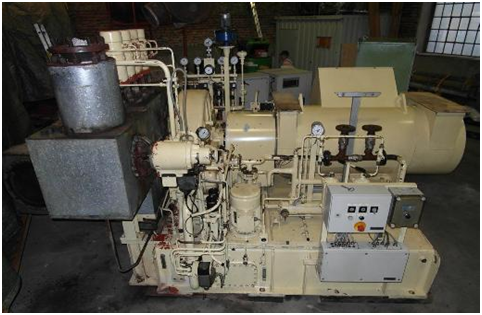

| 1 | backpressure | 16 bar / 300°C / 10t/h | 1993 | KKK | STG-29.17 |  |
| 1,7 | B | 30 bar / 360 °C / 24,6 t/h | 2009 | Spilling | STG-29.44 | |
| 1,55 | B | 41 bar / 400 °C / 16 t/h | 1993 | Dresser Rand | STG-29.19 | |
| 0.77 | backpressure | 25 bar / 390 °C | 1966 | AEG Kanis | STG-29.15 |  |
| 0,8 | B | 64 bar | 1997 | Nadrowski | STG-29.53 | |
| 0,8 | B | 16 bar | 1967 | KKK | STG-29.64 | |
| 0,68 | B | 29 bar / 440 °C | 1990 | Nadrowski | STG-29.42 | |
